Jiangyin Huake Machinery Co.,Ltd We can give comprehensive solution for scrap metal recycling needs. we do scrap metal balers and shears and crushers for 15 years and export very often.
5 Years
| Ask Lasest Price | |
| Supply Ability : | 200PCS Per Year |
| Payment Terms : | L/C, T/T |
| Brand Name : | HUAKE |
| Model Number : | Y81-200 |
| Certification : | CE SGS |
| Price : | 8000-20000 USD |
| Delivery Time : | 35-40 DAYS |
Hydraulic Automatic Scrap Metal Baler machine /metal press baler machine /scrap metal processing equipment
| Y81 SERIES METAL HYDRAULIC BALER specs to choose from | ||||||
| Turn-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H) (mm) | Bale Weight (kg) | Production (T/h) | Power (kw) |
| Y81F-63 | 630 | 1000*600*500 | 200*200 | 20~25 | 0.9~1.1 | 7.5 |
| Y81F-100 | 1000 | 1000*700*550 | 250*250 | 45~55 | 1.1~1.3 | 11 |
| Y81F-125A | 1250 | 1200*700*600 | 300*300 | 60~80 | 1.2~1.5 | 15 |
| Y81F-125A1 | 1250 | 1200*800*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
| Y81F-125A2 | 1250 | 1200*900*600 | 300*300 | 60~80 | 1.2~1.6 | 15 |
| Y81F-125B | 1250 | 1200*700*600 | 250*250 | 45~60 | 1.2~1.5 | 15 |
| Y81F-125B1 | 1250 | 1200*800*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
| Y81F-125B2 | 1250 | 1200*900*600 | 250*250 | 45~60 | 1.2~1.6 | 15 |
| Y81F-125AD | 1250 | 1400*800*700 | 300*300 | 65~80 | 1.5~2.0 | 18.5 |
| Y81F-160 | 1600 | 1400*900*700 | 320*320 | 80~110 | 2.2~3.0 | 22 |
| Y81F-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 22 |
| Y81F-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.6~3.9 | 15*2 |
| Y81F-200 | 2000 | 1600*1000*800 | 400*400 | 110~150 | 2.2~3.0 | 37 |
| Y81F-200A | 2000 | 1600*1200*800 | 400*400 | 130~180 | 2.8~3.9 | 37 |
| Y81F-200B | 2000 | 1800*1400*800 | 450*450 | 130~180 | 2.8~3.9 | 37 |
| Y81F-250A | 2500 | 2000*1400*900 | 500*500 | 190~280 | 3.5~5.0 | 22*2 |
| Y81F-250B | 2500 | 2000*1750*1000 | 500*500 | 200~380 | 4.0~6.5 | 22*2 |
| Y81F-250BKC | 2500 | 2000*1750*1000 | 450*450 | 160~250 | 3.2~4.5 | 22*2 |
| Y81F-315 | 3150 | 2500*2000*1200 | 600*600 | 250~650 | 4.5~7.0 | 45*2 |
| Y81F-400 | 4000 | 3500*2000*1200 | 500*600 | 45*2 | ||
| Y81F-500 | 5000 | 3000*2500*1200 | 600*700 | 55*2 | ||
| Side Push-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size(W*H)(mm) | Bale Weight(kg) | Production(T/h) | Power (kw) |
| Y81T-63 | 630 | 1000*600*500 | 200*200 | 28~35 | 0.9~1.1 | 7.5 |
| Y81T-100 | 1000 | 1000*700*550 | 230*230 | 42~53 | 1.2~1.5 | 11 |
| Y81T-125A | 1250 | 1200*700*600 | 300*300 | 65~80 | 1.2~1.8 | 15 |
| Y81T-125B | 1250 | 1200*700*600 | 250*250 | 50~62 | 1.2~1.5 | 15 |
| Y81T-125AD | 1250 | 1400*800*700 | 300*300 | 18.5 | ||
| Y81T-160 | 1600 | 1400*900*700 | 320*320 | 70~85 | 1.5~2.2 | 22 |
| Y81T-160A | 1600 | 1600*1000*800 | 400*400 | 110~150 | 2.0~3.5 | 22 |
| Y81T-160B | 1600 | 1600*1200*800 | 400*400 | 130~180 | 2.0~4.0 | 15*2 |
| Y81T-200A | 2000 | 1600*1200*800 | 450*450 | 140~190 | 2.5~4.5 | 37 |
| Y81T-200B | 2000 | 1800*1400*900 | 450*450 | 210~300 | 3.0~5.0 | 22*2 |
| Y81T-250A | 2500 | 2000*1400*1000 | 500*500 | 230~270 | 4.0~6.3 | 22*2 |
| Y81T-250B | 2500 | 2000*1750*1000 | 500*500 | 250~280 | 5.0~6.3 | 22*2 |
| Y81T-315A | 3150 | 2000*1400*1000 | 500*500 | 250~360 | 4.0~6.5 | 37*2 |
| Y81T-315B | 3150 | 2000*1750*1000 | 500*500 | 260~370 | 5.0~7.0 | 37*2 |
| Y81T-400 | 4000 | 3000*2000*1200 | 500*600 | 250~380 | 6.0~8.0 | 45*2 |
| Y81T-500R | 5000 | 2500*1300*800 | 500*500 | 300~500 | 6.0~10.0 | 22+37 |
| Forward-out Series | ||||||
| Model | Nominal Force (kn) | Press Box Size (L*W*H)(mm) | Bale Size (W*H)(mm) | Bale Weight (kg) | Production(T/h) | Power (kw) |
| Y81Q-100 | 1000 | 1100*600*550 | 600*220 | 40~60 | 1.0~1.8 | 7.5 |
| Y81Q-135A | 1350 | 1400*600*600 | 600*240 | 50~75 | 1.5~2.8 | 22 |
| Y81Q-135B | 1350 | 1100*600*600 | 600*240 | 45~65 | 1.2~1.7 | 15 |
| Y81Q-160 | 1600 | 1600*800*600 | 800*280 | 60~90 | 2.0~3.0 | 22 |
| Y81Q-200 | 2000 | 1600*800*700 | 800*280 | 90~110 | 2.5~3.5 | 30 |
| Y81Q-250 | 2500 | 1750*900*800 | 900*350 | 110~130 | 4.5~6.0 | 22*2 |
scrap metals applicable

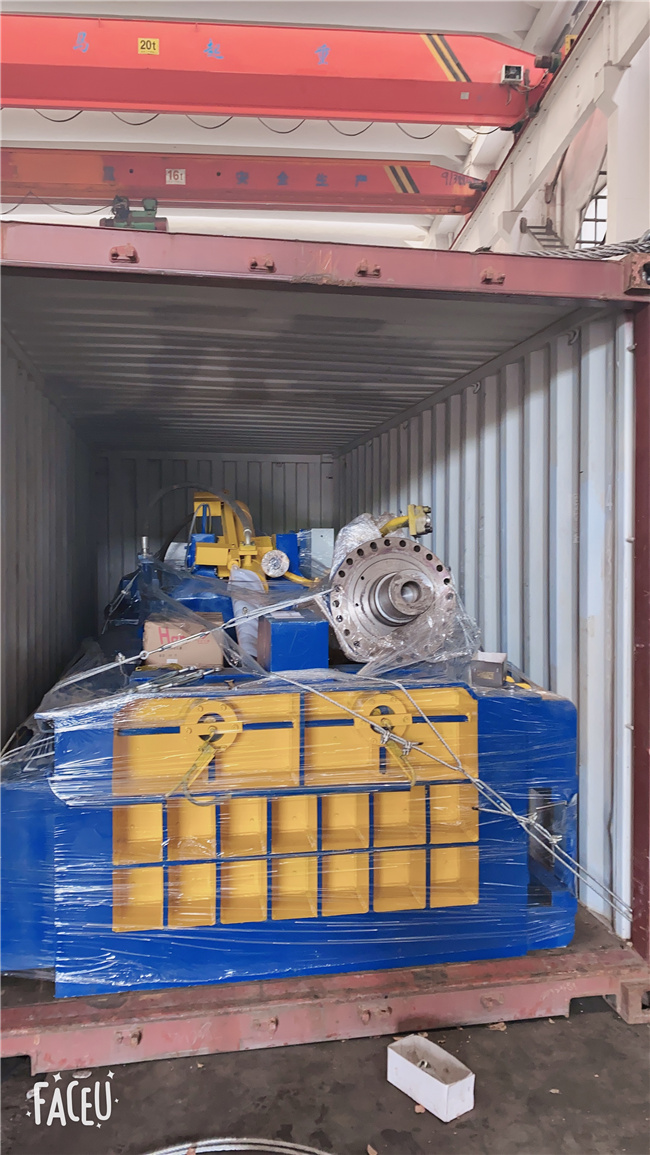

loading pictures
bales look like :
Watch The Video
Youtube:www.youtube.com/watch?v=QHD1xZvVTQY
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Huake
Function: Metal recovering and recycling.
Service : the machine are always tested and assembled before
shipping,customer only need to follow simple steps to start
.Engineers available on phone 24 hours ,unsolvable problem come to
fix.
Model Number: Y81F-315
Color: User Defined
Packaging & Delivery
Packaging Details: Nude packing, loading container directly.
Delivery Detail: 35-45 days
Features:
A) Hydraulic drive, manual valve operation or PLC control...
B) Bale-discharging: "turn-out", "push-out", "forward-out" & manual
discharging.
C) Options for different force, press box size, bale shape & size
D)Electrical motor, diesel engine or generator for power.
Applications:
Y81 series of hydraulic scrap balers are applied in steel mills,
recycling plants, ferrous & non
-ferrous smelting industry to press scrap metal (steel, copper,
aluminum, stainless steel, discarded automobiles, etc)
Into acceptable furnace charges in shape of cuboids, cylinders &
octagons.
Questions and answers:
Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2. Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3. Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4. Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.53 , Yungu Road, Jiangyin City,
Jiangsu Province, China.
5. Q: Can we order one set machine?
A:Yes, you can.
we are close to 20 years experienced manufacturer of scrap metal baler , scrap metal shear ,scrap metal cursher machine.
can offer good quality machine and excellent asfter sale service.
Our Advantage
We are highly professional scrap metal baler/
shear/shredder/crusher manufactruer for long years We can give
almost full solution for all scrap recycling needs.
|
|
