Jiangyin Huake Machinery Co.,Ltd We can give comprehensive solution for scrap metal recycling needs. we do scrap metal balers and shears and crushers for 15 years and export very often.
5 Years
| Ask Lasest Price | |
| Brand Name : | HUAKE |
| Model Number : | Q43-5000 |
| Certification : | CE SGS |
| Price : | 30000-50000USD |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 200PCS Per Year |
| Delivery Time : | 30-5o days |
Application :

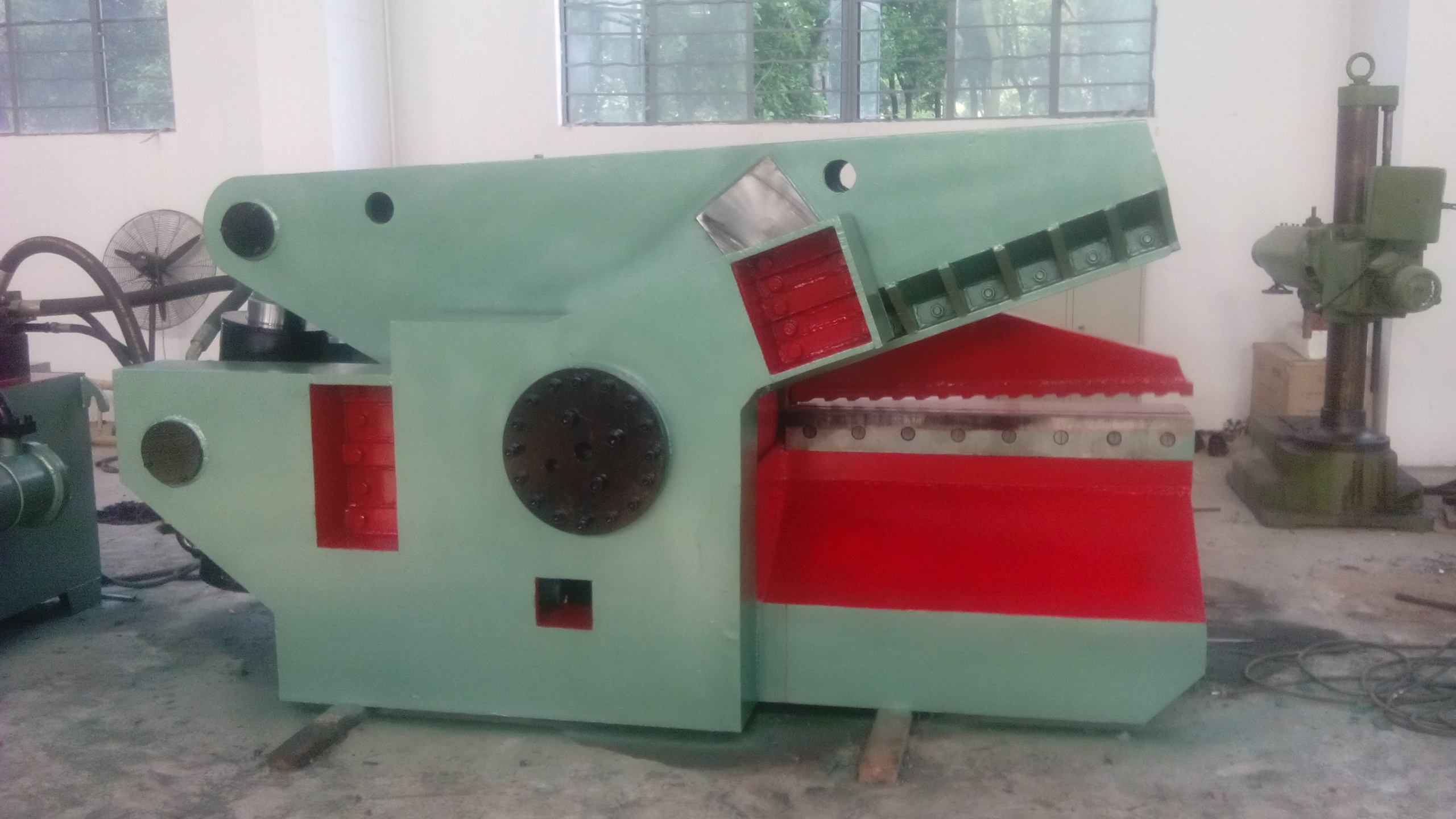

Q43 Series of Iron Cutting Machine is applied in recycling
companies, automobile dismantling plants,smelting & casting
industry to cold-shear section steel and metallic structural parts
into acceptable furnace charges.
typical models for choice.
| Model | Max.Cutting Force (KN) | Blade length (mm) | Max.Cutting Size (mm) | Shearing Frequency (times/min) | Motor (kW) |
| Q43- 630 | 630 | 600 | 30 x 30 Φ 35 | 8 - 12 | 7.5 |
| Q43- 1000 | 1000 | 800 | 35 x 35 Φ 40 | 8 - 12 | 11 |
| Q43-1200 | 1200 | 600 | 40 x 40 Φ 45 | 8 - 12 | 15 |
| Q43-1600 | 1600 | 700 | 45 x 45 Φ 50 | 6 - 10 | 18.5 |
| Q43-2000 | 2000 | 800 | 55 x 55 Φ 63 | 6 - 10 | 22 |
| Q43-2500 | 2500 | 1000 | 65 x 65 Φ 73 | 6 - 8 | 30 |
| Q43-3150 | 3150 | 1200 | 80 x 80 Φ 85 | 6 - 8 | 37 |
| Q43-4000 | 4000 | 1500 | 90 x 90 Φ 95 | 6 - 8 | 44 |
| Q43-5000 | 5000 | 1600 | 100x100 Φ 100 | 6 - 8 | 60 |
Detailed parameters
Jiangyin Huake Machinery Equipment Co.,Ltd Q43-6300 Alligator Metal Shear machine | ||||||||||||||||
| Item no, | Parameters | Ietm | Parameters | |||||||||||||
| 1 | Maximum shear force | 6300 kN | 2 | Shearing cylinder | YG340/220-585 | |||||||||||
| 3 | Maximum holding force | 600 kN | 4 | Holding Cylinder | YG180/125-485 | |||||||||||
| 5 | Height of work table | 1050 mm | 6 | Shear frequency | 4～8 times/minute | |||||||||||
| 7 | Working length of shearing machine | 1000 mm | ||||||||||||||
| 8 | Corresponding blade maximum opening height | 670 mm | ||||||||||||||
| 9 | Hydraulic system working pressure | 25 MPa | ||||||||||||||
| 10 | Electric motor | Model number | Y250L2-6 | rated power | 37 kW | |||||||||||
| Nominal speed | 970 rpm | Quantity | 2 sets | |||||||||||||
| 11 | Hydraulic pump | Model number | 250YCY14-1B | Nominal pressure | 31.5 MPa | |||||||||||
| Rated displacement | 250 ml/r | Quantity | 2 sets | |||||||||||||
| 12 | Equipment dimensions | Main machine size | 4100×1500×2600 mm | |||||||||||||
| Hydraulic station dimensions | 2200×1700×1600 mm | |||||||||||||||
| 13 | Water cooler | GLC-12 | 12 square meter cooling effect | |||||||||||||
| 14. | Machine weight | 30tons | ||||||||||||||
| (2) Shearing specification unit: mm | ||||||||||||||||
| Item | Shear material | spec(mm) | Item | Shear material | spec(mm) | |||||||||||
| 1 | Round steel | Φ120 | 4 | Channel steel | 320×90×10 | |||||||||||
| 2 | Square steel | 120×120 | 5 | I-beam | 320×132×11.5 | |||||||||||
| 3 | Angle steel | 180×180×15 | 6 | Steel plate | 30×1000 50×600 | |||||||||||
Note: Because this machine adopts the lever principle to enlarge the structure, the shearing force of the shearing knife is not equal. The specifications listed in the table refer to the maximum shearing force position when the tensile strength limit of the material to be sheared is δb≤450MPa ( That is, the maximum shear section size when it is close to the inner end of the shearing knife. | ||||||||||||||||
MAX SHREARING CAPACITY :
ANGLE STEEL:160X160X12MM (3 pieces)
I-STEEL:250X118X10MM
CHANNEL STEEL:280X124X11.5MM
STEEL SHEET:20X700MM/40X300MM
SQUARE STEEL:63X63MM
ROUND STEEL:70 mm diameter
We have combined our own technical advantages and used years of experience to develop various Scrap Metal shearing machien (Quality Guarantee). With advanced production technology and high-quality supporting services, our products are appreciated by our customers. We carry the concept of manufacturing products in a harmonious symbiosis between people and the environment. We, with open arms, invite all interested potential buyers to visit our web-site or get in touch with us immediately for further information and facts.
customer service: 24-hour online service
pre-sale: Tailor made Technical cooperation
vedio plant tour is also highly acceptable.
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2005.
2. Where is your factory located?
Our factory address is : Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.
6. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well
10. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book
The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
|
|
