CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine

Jiangyin Huake Machinery Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine from wholesalers

    Buy cheap CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine from wholesalers
    • Buy cheap CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine from wholesalers
    • Buy cheap CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine from wholesalers
    • Buy cheap CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine from wholesalers

    CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine

    Ask Lasest Price
    Brand Name : HUAKE
    Model Number : Q91-800
    Certification : CE
    Price : 100000-150000 USD
    Delivery Time : 60 DAYS
    • Product Details
    • Company Profile

    CE 800 Tons Gantry Shear Automatic Scrap Shearing Machine

    Q91-800 800 TONS POWER GANTRY SHEAR /SCRAP SHEAR

    PARAMTERS IN DETAILS


    1) Application

    This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.

    (2) Characteristics

    a. This machine adopts the upper compression scrap shaping and segment feeding mode. In addition, it is designed for wide and large Material cabinet. It has good adaptability to various kinds of scrap steel materials. The scrap steel after shearing has high compactness.

    b. Machine, electricity, hydraulic system, integrated control, easy to learn, intuitive operation, convenient

    c. Adopt PLC control. High reliability and easy maintenance

    d. Each moving part is driven by hydraulic pressure. It works smoothly. The shearing force is strong. The efficiency is high


    Q91Y-800W HEAVY DUTY GANTRY SHEAR PARAMETERS

    ITEM NO.PARAMETERSremarks
    1SHEARING CYLINDERMODEL NO.YG450/300-950

    400*2 =800

    TONS POWER

    MAXIMUM THRUST4500KNX2QUANTITY2sets
    2CLAMPING CYLINDERMODEL NO.YG240/160-1000

    125*2=250TONS POWER

    MAXIMUM THRUST1250KNX2QUANTITY2 sets
    3ENHANCING SPEED UP CYLINDERMODEL NO.YG220/160100 TONS POWER
    MAXIMUM THRUST1000kNQUANTITY1set
    4MATERIAL PUSH CYLINDERMODEL NO.YG240/180125 TONS POWER
    MAXIMUM THRUST1250kNQUANTITY1set
    5MATERIAL BOX SIZE (L W H)8000×1800×900 mm
    6HYDRAULIC SYSTEM PRESSURE25MPa
    7

    SHEARING BALDE LENGTH

    MINIMUM OPEN HEIGHT

    1800mm/580mm
    8MAXIMUM CLAMPIG HEIGHT630mm / 1000mm
    9Total Power176KW
    10Power Spec380V/3PH,50Hz OR CUSOMIZE
    11Shearing angle11 degrees
    12MATERIAL PUSHING METHOD

    Back cylinder push


    Length adjustable by your self

    There is a length control system on machine

    Speed 230mm/second


    CYLINDER DETAILYG240/180 CYLINDER FORCE 1250 KN=125TONS POWER
    13Shearing width1800㎜
    14

    maximum shearing capacityΔb≤450Mpa


    Round steel:φ150mm

    In the middle of the blade

    Square steel:130×130mm
    Steel plate:70×600mm
    15Shearing frequency(empty load)3-4 times/minute
    16ElectromotorModelYX3-250M-4Rated power55KW
    Rated speed1480 rpmQuantity3setst
    17Hydraulic pumpModelHY250Rated Pressure31.5MPa

    Nominal

    Displacement

    250ml/rQuantity3 sets

    18


    Cooling circulating pumpModel2CY-24/6.3-1Rated speed11Kw

    Nominal

    Displacement

    400L/minQuantity1450 rpm
    Nominal pressure6.3MPaPower1set
    WATER COOLERMODELGLC-21COOLING AREA21 SQAURE METERS
    19MACHINE WEIGHTAround 80 tons
    20Production effciiencyConservatively estimate 10 tons per hour



    Features
    1) PLC, equipped with remote control.
    2) Hydraulic motor pushing.
    3) Customized feed box size& Blade length.
    4) Complete technical services.



    After-sell service
    1) One year guarantee and lifelong maintenance.
    2) Spare parts: supply one set of spare parts for free, tool box, operation book.
    3) Any problem, you can get our vedio guide easily

    4) 24 hour response

    5) guiding vedio and technical support

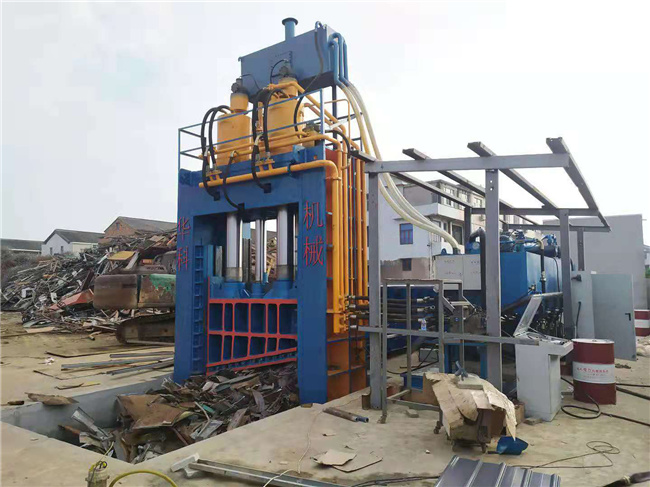

    Product Pictures


    suitable for materials like



    Technical Specification

    ModelQ91Y-800
    Max Cutting Force( ton)800
    Press Box Size( mm)8000*1900*1200 or customize
    Blade Length( mm)2000
    Cutting Frequency( times/min)3-4 times per minute
    Cutting Specifications( mm)600mm

    MACHINE VEDIO ON YOUTUBE :


    https://youtu.be/KW6k9f6CRMc

    https://youtu.be/VUxkrB_1dyY

    https://youtube.com/shorts/HIf-4W2Nx3s?feature=share


    other modes for choice :


    our plant


    Jiangyin huake Machinery equipment co .,ltd has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinesemanufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap metal baler, scrap metal shear, and scrap metal cursher and shredder


    In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.


    Our huake brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. and we hae CE CERTIFICATES


    welcome to send inquiry with us.

    We believe customer satisfaction is what we are most enthusiastic about.We are not selling a single machine,we are selling an idea that every business with us is not one time business,we will have your favorable feedback and make more business under your help.Helping each other is the best way to upgrow.

    1. Are you a manufacturer, trading company or a third party?

    We are a manufacturer, and we have built up our company since 2005.


    2. Where is your factory located?

    Our factory address is : Jiangyin City, Jiangsu Province, China.


    3. How can i get to your factory?

    Our factory is near shanghai Airport, we can pick you up in the airport.


    4. If i will need to stay in your place for few days, is that possible to book the hotel for me?

    It's always my pleasure.


    5. What is your minimum order quantity, can you send me samples?

    Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.


    6. What is the delivery time of your machine?

    In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.


    8. Can the machine be customized as our need, such as put on our logo?

    Surely our machine can be customized as your need, Put on your logo is also available.


    9. As the shipping period will take long time, how can you make sure the machine won't be broken?

    Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well


    10. May i know which payment will be accepted by your company?

    So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC


    11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?

    The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.


    12. After we placing an order, will you arrange the installation of the machine at present?

    All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book

    The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
