| Brand Name : | huake |
| Model Number : | QW-800 |
| Certification : | CE |
| Price : | USD 50000-80000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 50 Sets Per Year |
| Delivery Time : | 40-50 days |
I. Suitable for:
It is suitable for cold shearing of light and thin materials with various cross-sectional shapes (such as color steel tiles, channel steel, steel plates, etc.) to make them meet the requirements of the charge; and is convenient for storage and transportation, and can be used for metal recycling, casting and smelting industries , Machinery construction industry and many other industry supporting services.
01 This machine adopts hydraulic transmission, which is small in size, light in weight, small in
Low pitch, stable movement, flexible operation, large cutting section, etc.Our shear has speeder, when unload, one cylinder will drive the main shearing cylinder to move, with more than 50% faster speed, save more than 30% time.
02 It adopts the integrated control of machine, hydraulic and electricity, which can realize the conversion of single and continuous action. It is simple and convenient to use.
Stop and run working position, easy to realize overload protection
03 The electrical appliances are controlled by PLC, with reliable performance; and automatic lubrication is used to lubricate the spindle intermittently, which is beneficial to extend
Service life of equipment
04 It has a wide range of applications, which can be used as processing equipment for metal recycling and processing units, and as a charge for factory casting workshops Metal cutting processing equipment for processing and mechanical construction industry
05. Using international imported accessories and materials, compact internal structure, high quality, high efficiency and low energy consumption;
06 Fully enclosed feeding, high safety performance. Use super large feeding port to feed enough materials;
07. PLC automatic fast cutting, unmanned operation, low cost and high efficiency;
08. Low cutting material restriction and wide range of material delivery. Uninterrupted feeding and continuous cutting;
III. PRODUCT PARAMTERS

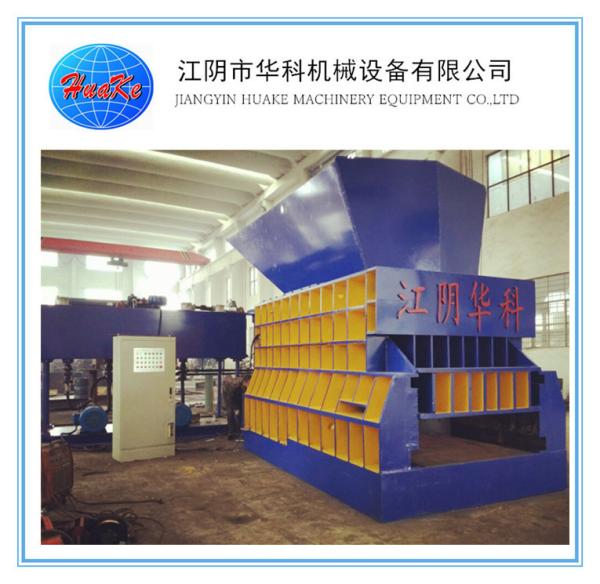

CONTAINER TYPE SHEAR FOR CUTTING SCRAP METALS
Contact us! We would like to tell you more about our shearing
system.
Jiangyin Huake Machinery Equipment Co., Ltd Manufacturer:Jiangyin Huake Machinery Equipment Co., Ltd ADD:NO.53Yungu Road, Changshou Industrial Zone, Zhouzhuang Town,Jiangyin, Jiangsu,China QWS-800 HEAVT DUTY CONTAINER SHEAR MAIN PARAMETERS | ||||||||||||
| ietm no. | paramyters | |||||||||||
| 1 | 剪切油缸 SHEARING CYLINDER | 型 号 MODEL NO. | YG450/300-830 | 行 程 TRAVEL LENGTH | 2sets | |||||||
| 最大推力MAXIMUM THRUST | 4000KN | 数 量 QUANTITY | 830 mm | |||||||||
| 2 | 压料油缸 CLAMPING CYLINDER | 型 号 MODEL NO. | YG260/180-870 | 行 程 TRAVEL LENGTH | 1set | |||||||
| 最大推力MAXIMUM THRUST | 1300KN | 数 量 QUANTITY | 870mm | |||||||||
| 3 | 液压系统工作压力 HYDRAULIC SYSTEM PRESSURE | ≤25.0Mpa | ||||||||||
| 4 | 加料口规格(长×宽) HOPPER SIZE(LxH) | 2000X1400(mm) | ||||||||||
| 5 | 剪切口长度 SHEARING LENGTH | 1400X450(mm) | ||||||||||
| 6 | 剪切速度(空载) Shearing frequency(empty load) | 2~3次(min) | ||||||||||
| 7 | 产量 Production efficiency | 8-10t/h | ||||||||||
| 8 | 电源规格 Power Spec | 380V/3PH,50Hz | ||||||||||
| 9 | 设备总功率 Total Power | 135KW | ||||||||||
| 10 | 最大剪切范围 maximum shearing capacityΔb≤450Mpa | 圆钢 ROUND STEEL:Φ170mm | ||||||||||
| 方钢 SQUARE STEEL:130X130mm | ||||||||||||
| 角钢ANGLE STEEL:220X220X15mm | ||||||||||||
| 工字钢 I-BEAM:320X132X15mm | ||||||||||||
| 11 | Electromotor | model | YX3-225M-4 | quantity | 3SETS | |||||||
| Rated speed | 1470 | Rated power | 45KW | |||||||||
| 12 | Hydraulic pump | Model | HY250 | Rated Pressure | 3SETS | |||||||
Nominal Displacement | 250ml/r | Quantity | 31.5Mpa | |||||||||
| 13 | 液压油冷却方式 Hydraulic oil cooling ways | 水冷 Water cooling | ||||||||||
| 14 | 油箱容积 Oil tank volume | 3800升 3800LITERS | ||||||||||
| 15 | 操作及捆扎方式 Operation mode | 按钮操作+遥控器操作 Automatic plc , button control + remote control | ||||||||||
| 16 | 主机外形尺寸(长×宽×高) Machine outer size( L W H) | 6000X2300X2600mm | ||||||||||
IV. product vedio on youtube:
To achieve the purpose of reducing land occupation, reducing total energy consumption in society, saving investment, protecting the ecological environment, and improving labor productivity. . It is mainly aimed at shredding super-large, super-thick and difficult-to-shred materials, and reduces the size of the material through shearing and squeezing. It has the characteristics of wide application range, low energy consumption and high output.
common questions
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have built up our company since 2005.
2. Where is your factory located?
Our factory address is : Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, vedios and warmly welcome you to come visit our company.
6. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30-50 days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is export worthy package, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to or Dedicated strapping fix the machine with the container.we also ship our machines through bulk ship especially our big machines , they all packaged well and fixed well
10. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by T/T are available. LC
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly by following our installation guide book
The installation guide book has very much pictures and clear instruction to make sure your engineer can set uo it very easily , also our machine are easy to be installed, we also offer 24 hours online service through whatsapp or wechat .99% customer set up machine easily without our engineer.if you customer needs our assistance, we will be pleased to arrange the installation, just we have to charge the cost of travelling.
|
|
